Voltage Test |
|
Voltage Range |
12 - 690V AC/DC |
Nominal Voltage |
12/24/50/120/230/400/690V AC (16 - 400Hz), DC (±) |
Tolerance |
Light on at more than: |
(Threshold Voltage) |
7±3V (12V LED) 18±3V (24V LED) 37.5±4V (50V LED) 75%±5% of nominal voltage (120/230/400/690V LED) |
Response Time |
<0.6s at 100% of each nominal voltage |
Peak Current |
ls<3.5mA (at 690V) |
Measurement Duty |
30s ON (operation time) 240s OFF (recovery time) |
Single-pole Phase Test |
|
Voltage Range |
100 - 690V AC (50/60Hz) |
Phase Rotation Test |
|
System |
Three-phase 4-wire system 200 - 690V phase-to-phase AC (50/60Hz) |
Phase Range |
120±5 degree |
Continuity Test |
|
Detection Range |
0 - 400k?+50% |
Test Current |
Approx. 1.5?A (battery 3V, 0?) |
Applicable standards |
IEC 61243-3, IEC 61010-1, IEC 61557-7 CAT ? 690V / CAT ? 600V Pollution degree 2 |
IP Rating |
IP65 (IEC 60529) |
Operating temperature & humidity range |
-15 - 55ºC, max 85% RH (No Condensation) |
Storage temperature & humidity range |
-20 - 60ºC, max 85% RH (No Condensation) |
Power source |
LR03 (AAA) 1.5V×2 |
Dimensions |
246(L)×64(W)×26(D) mm |
Weight |
190g (including batteries) |
Included Accessories |

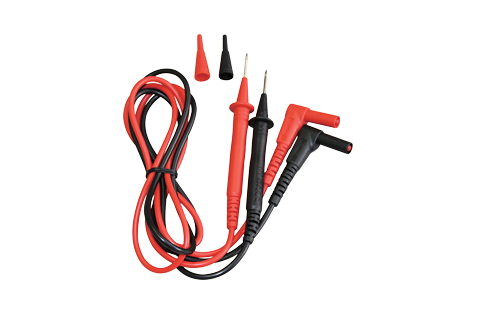

LR03 (AAA) 1.5V×2, KTA01 (4mm metal tips [2pcs/set]), KTA02 (4mm rubber caps [2pcs/set]), Instruction manual |
